| What is a Thin Film Pressure Sensor? |
|
|

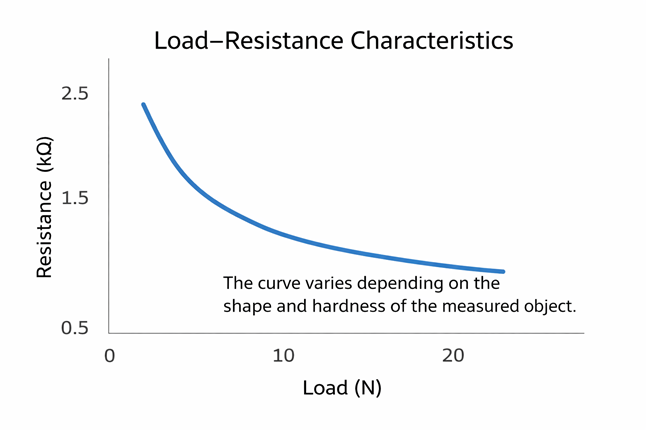

The thin film pressure sensor detects applied pressure. The electrical resistance changes depending on the pressure applied. The sensor can be attached continuously directly to the surface where measurement is required, allowing direct detection of contact pressure. It can also be integrated into membrane switches and customized according to customer requirements.
Key Features 1) Ultra‑thin design (approx. 200 μm thickness) 2) Capable of detecting loads up to approximately 2 kg *Detailed specifications available upon consultation* 3) Printed manufacturing process allows flexible shapes 4) Circuit design support is available |
|
| Application Examples | |
| Precise push‑force input for intuitive human interfaces | Control of airflow or rotation speed based on grip force |
|
|
| Control of water flow by pressing force | Control for electronic musical instruments and game controllers |
|
|
|

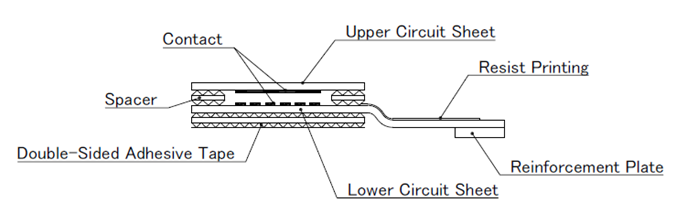

CrossSection Structure Because the sensor is thin and flexible, it can be integrated into narrow spaces or curved surfaces in various products.
|
|
Sensor Architecture
|
|
|
Evaluation Samples Available You can try our sensor film with the following evaluation models. |
|
|

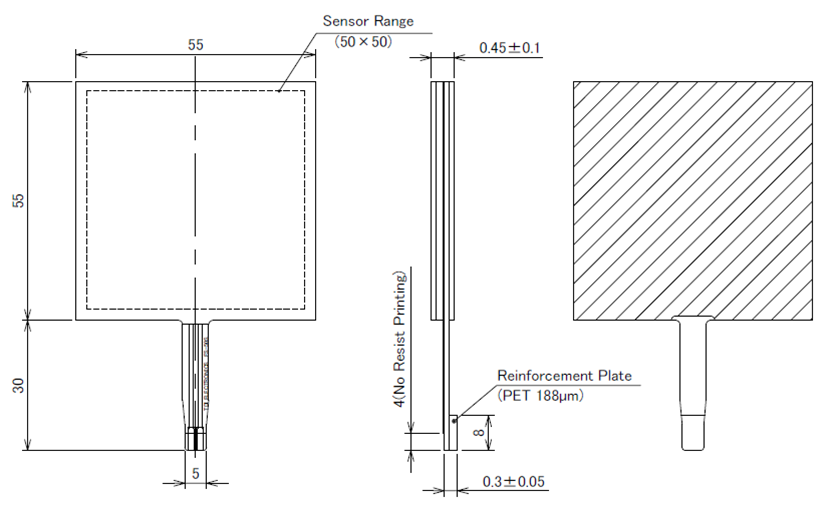

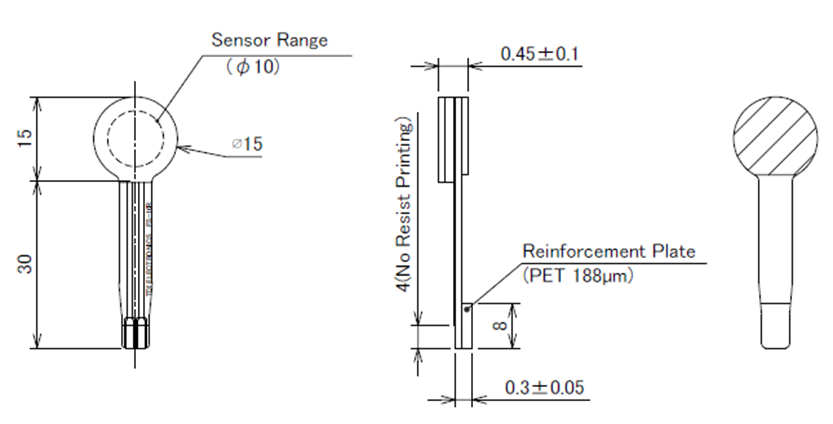

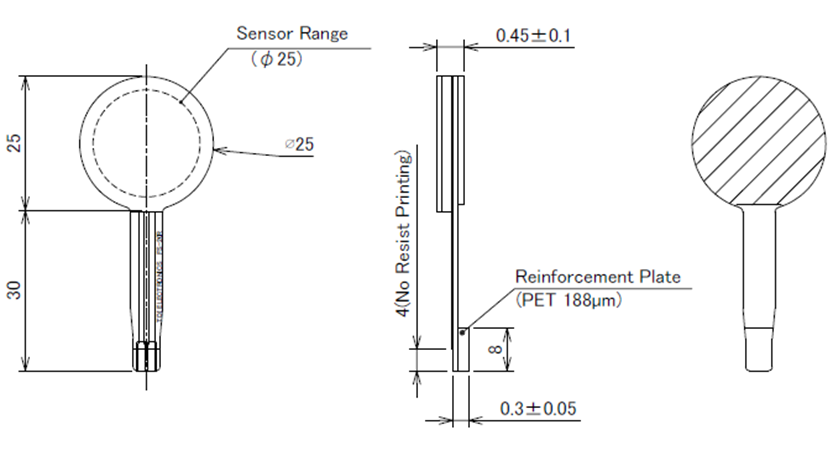

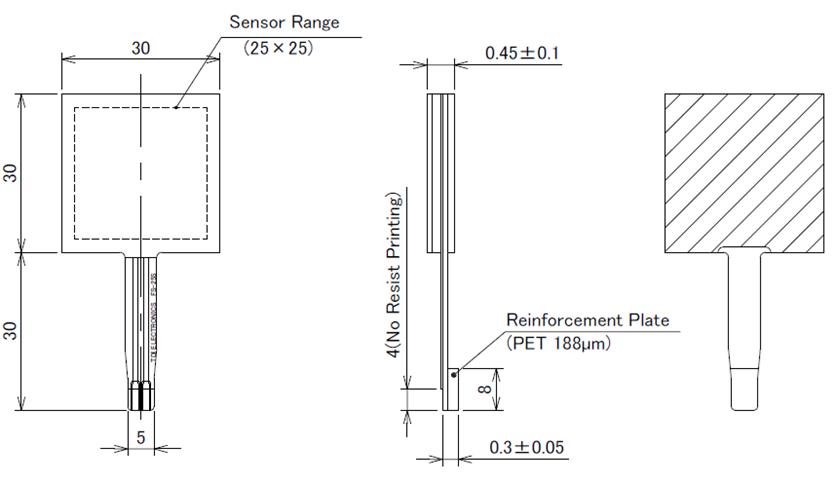

Sample Product Lineup Product Name: FS-50S  Product Name: FS-25S  Product Name: FS-20R  Product Name: FS-10R
|
|
|
Note A microcontroller and software required to control this sensor sheet must be prepared separately. Specifications Contact pitch / pins: 2 mm pitch, 2 pins Compatible connector example: FMN type (Japan Solderless Terminal / JST) Maximum voltage: DC 24V Maximum current: 5 mA Operating temperature: −10 to 50°C Storage temperature: −20 to 60°C |
|
