| What Is a Capacitive Touch Switch? |
|
||||||
|
We manufacture ultra-thin capacitive sensor films using our screen printing expertise. By detecting changes in capacitance between the human body (typically a finger) and the target surface, the film can function as a touch switch or a non-contact proximity sensor.
Material: PET film — high transparency, thin, lightweight, and flexible.
Typical Applications • Home appliances: refrigerators, rice cookers, etc. • Building equipment: range hoods, lighting switches, etc. • Industrial equipment: electron microscopes, electric drills, etc. |
|||||||
|
Key Features | ||||||
|
1) Design flexibility to match your product aesthetics
Backlit switches and a wide range of appearances are available, including black, white, woodgrain, and more. 2) Flat surface for easy cleaning and a premium look
A flat surface improves cleanability, and hard surface materials such as glass can also be used. 3) Long service life with high durability
Because there is no mechanical key press, there is no “key-life” limitation, providing peace of mind in long-life products. 4) Simplified structure to reduce assembly work
The laminated structure is simple, and we can support circuit/pattern design as well. 5) Expandable beyond switches
Capacitive sensing can also be applied to liquid detection, metal detection, and non-contact sensing. Please consult us for your specific use case. |
|||||||
| Examples as a Switch Interface | |||||||
| IH Cooking Heater | Range Hood | Wine cellar | Refrigerators, etc. | ||||
 |
 |
 |
 |
||||
|
Easy Connection Connection is simple: insert the tip of our film sensor pattern into the connector on the PCB side. |
|||||||
|
Film sensor pattern PCB
|
|||||||

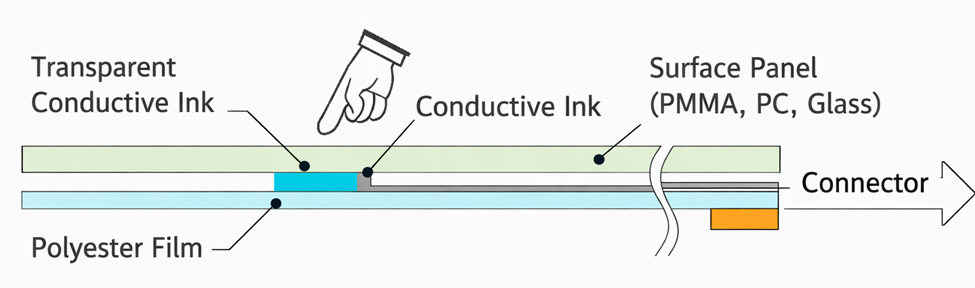

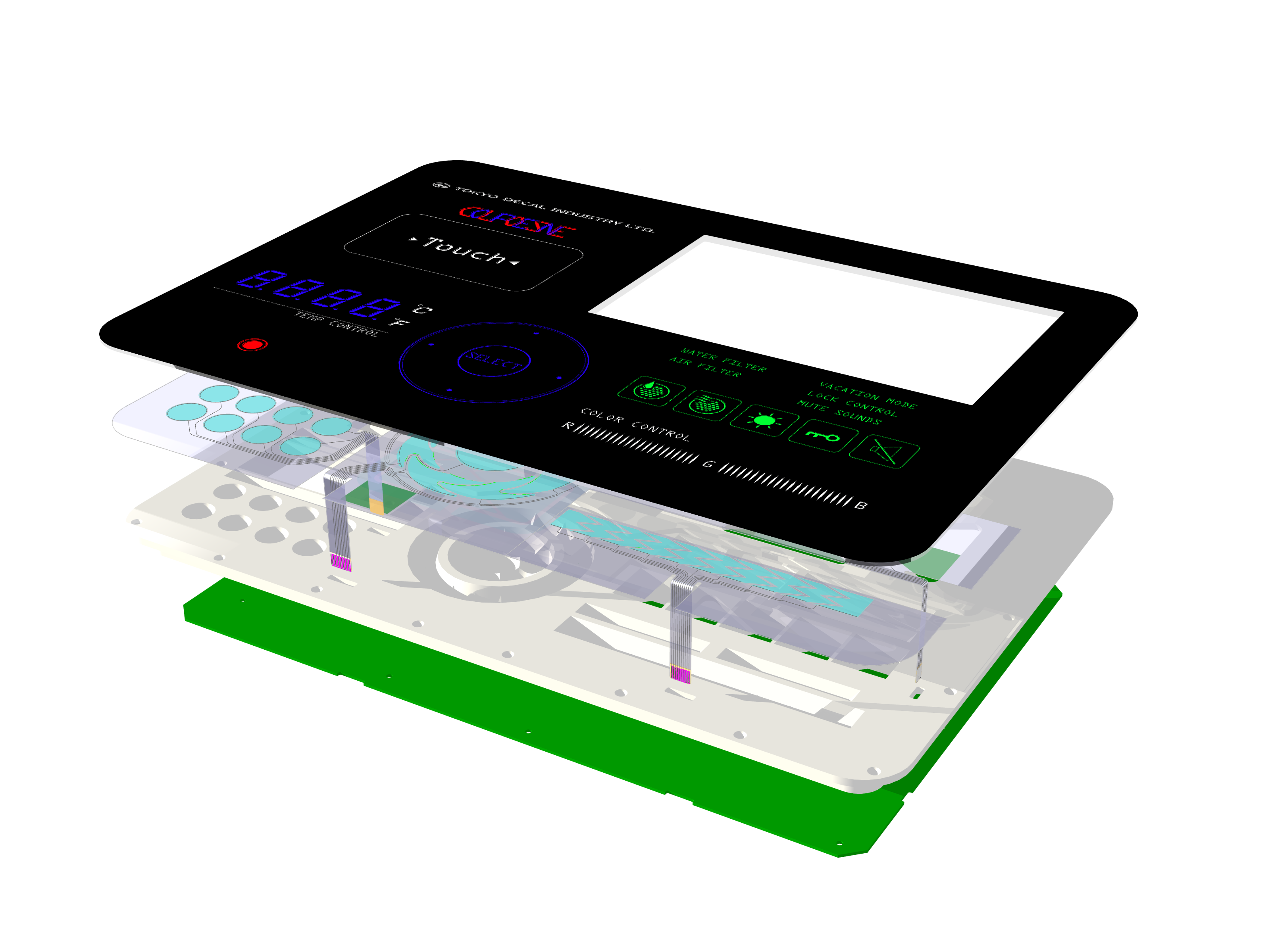

Cross-Section Structure
|
|||||||
|
Liquid Level Sensing By attaching our sensor film to the outside of a liquid container, it is possible to detect the water level. The same film can therefore be used as a liquid level sensor. |
|||||||
|
The demo unit shown here indicates the detected liquid level using LEDs. | ||||||
|
Try Our Sensor Film Evaluation samples are available for testing and prototyping. |
|||||||
|
Trial Sample Lineup Product Names: (1) LD-180C (2) LD-135C (3) LD-180T (4) LD-135T
|
|||||||
|
Important Notes A microcontroller and software required to control this sensor sheet are not included and must be prepared separately. Data Types • Silver paste (mesh) + carbon (overall) printed type: LD-180C, LD-135C • Transparent conductive printed type (not perfectly transparent): LD-180T, LD-135T Overview A thin, flexible capacitive sensor sheet that can be applied to switches as well as liquid detection and other sensing applications. Specifications Size: W38 × L265 mm (LD-180C, LD-180T) / W38 × L215 mm (LD-135C, LD-135T) Base film: Polyester film, thickness 0.1 mm Contact pitch / pins: 1.0 mm pitch, 10 pins Compatible connector example: FMN type (Japan Solderless Terminal / JST) Maximum voltage: DC 12V Maximum current: 20 mA Operating temperature: -10 to 50°C Storage temperature: -20 to 60°C Microcontroller examples: Cypress PSoC series, Renesas RX series |
|||||||
|
Trial Sensor Film Pricing (Tax Included) All items (1)–(4) are JPY 1,100 per piece. Maximum quantity per order: 20 pieces. Shipping fee: JPY 430 (tax included). Shipment is limited to addresses within Japan. Safety & Usage This product is manufactured for sensor evaluation purposes. Use for purposes other than evaluation/testing and resale are prohibited. Keep out of reach of children. Sales are limited to corporations and development/design personnel. Contact Please use the following link for inquiries: Contact Us  Purchase If you would like to purchase, please use the following link: Click Here
|
|||||||
